| STANDOVER HEIGHT | 54CM |

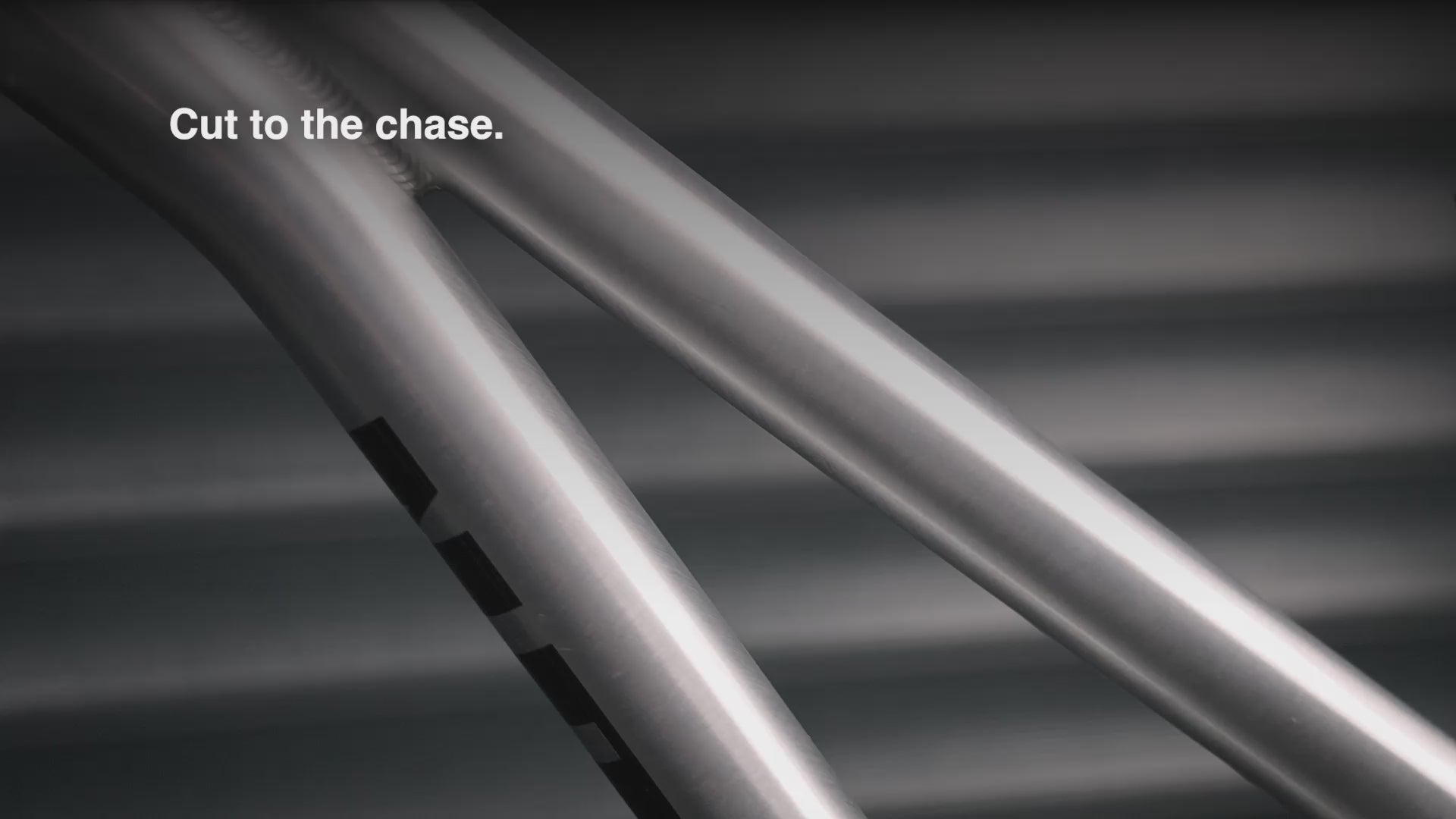

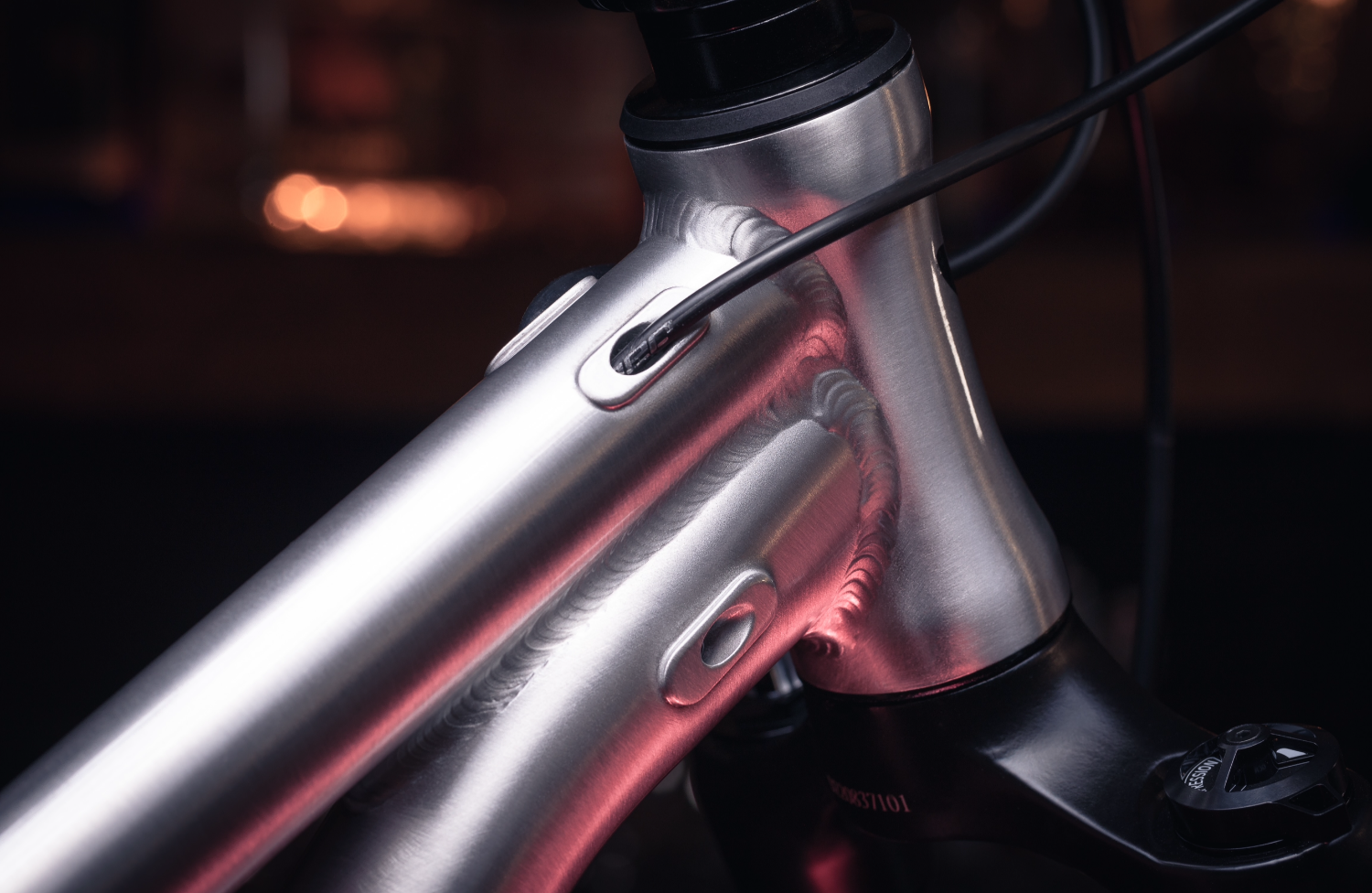

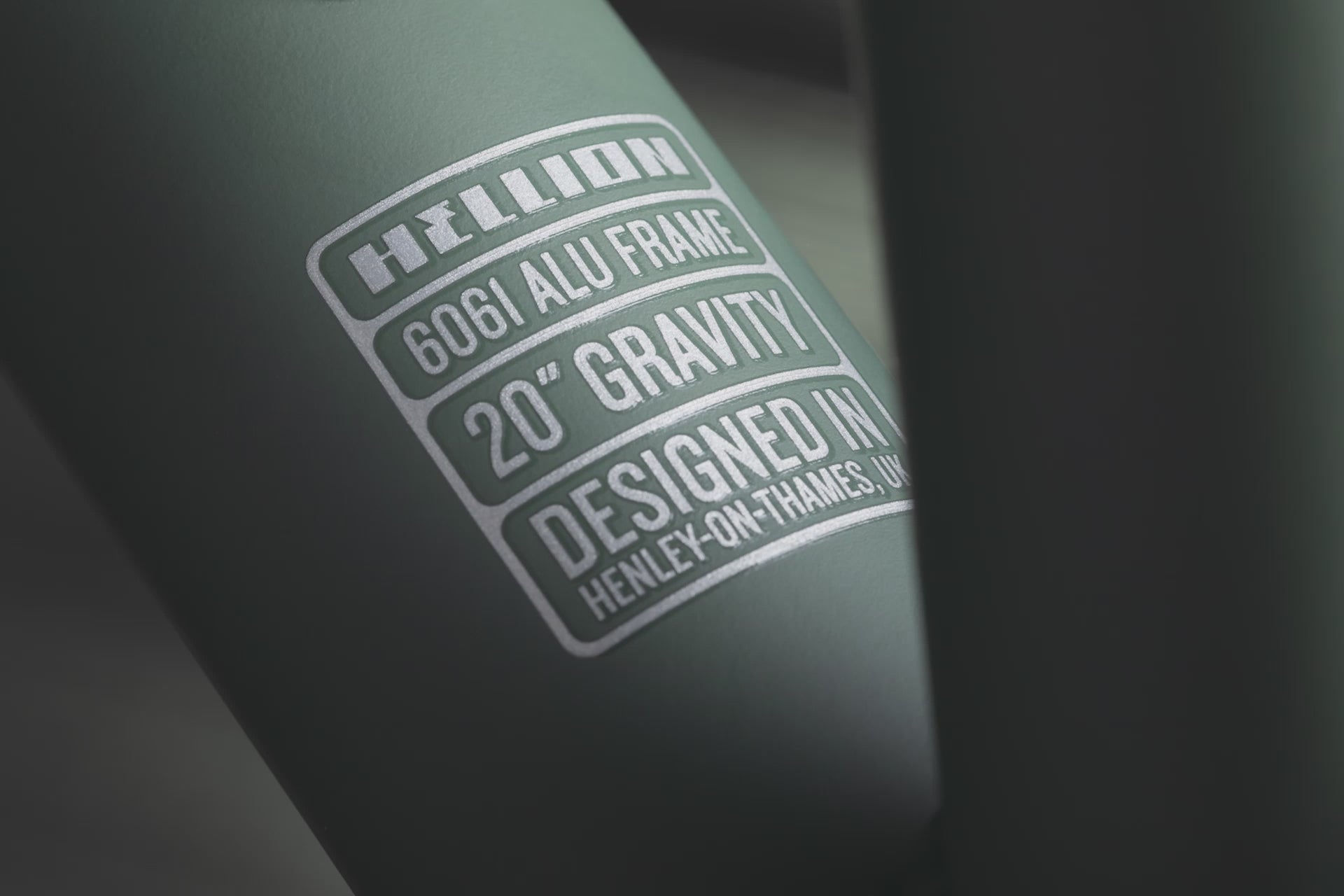

| FRAME | TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY |

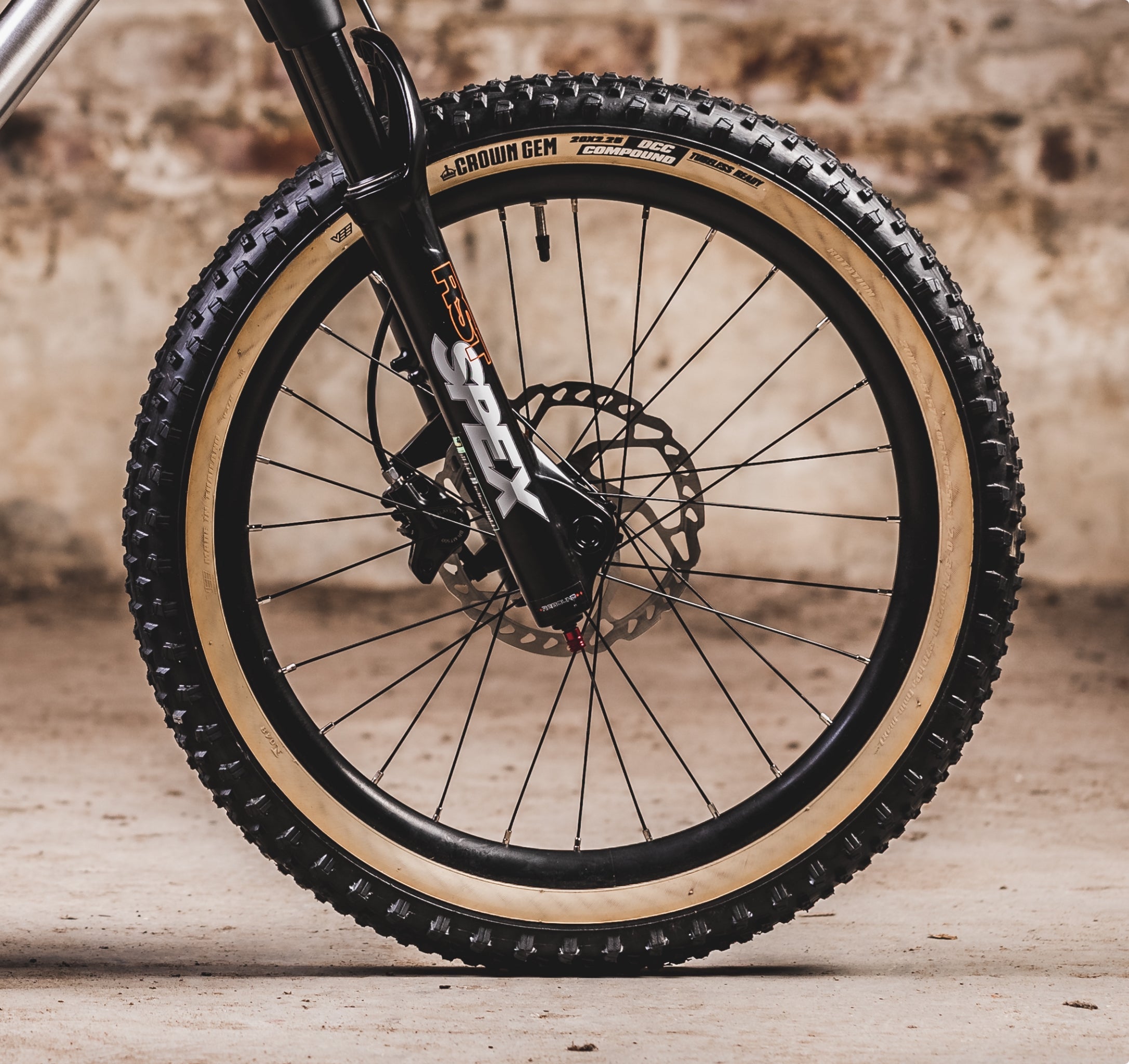

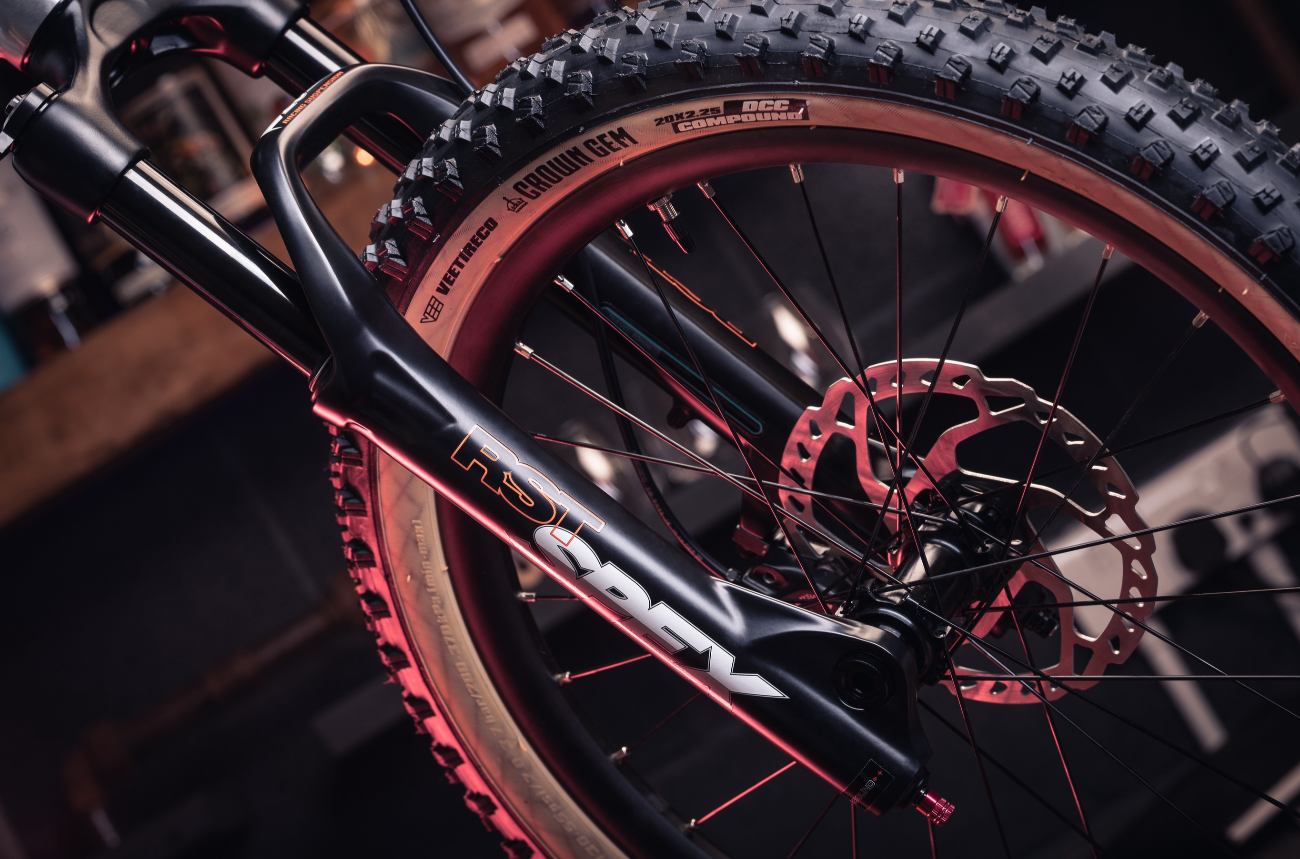

| FORK | RST SPEX, 80MM TRAVEL, 15mm THRU AXLE |
| STEERER | TUBE AL6061 |
| CRANKS | SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR |
| PEDALS | ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING |
| BOTTOM BRACKET | ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING |
| RIMS | 20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE |

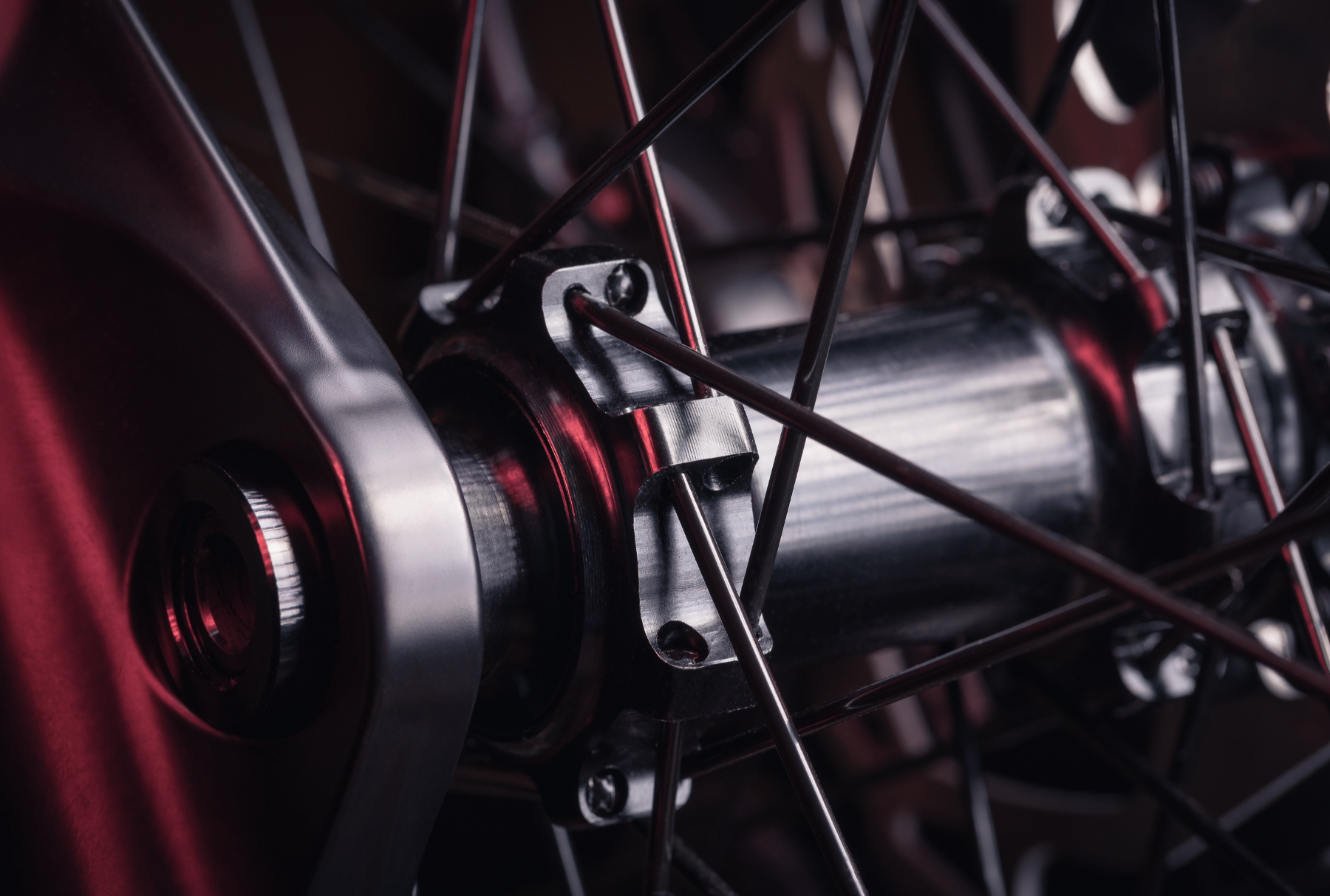

| REAR HUB | CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE |
| FRONT HUB | CNC'D STRAIGHT PULL AL6061, 15x100MM THRU AXLE |
| AXLES | THRU AXLES AL7075, 15MM FRONT, 15MM REAR |
| CHAIN | KMC X10 |
| CHAINRING | CNC'D STEEL 30T NARROW WIDE |
| WEIGHT | 9.6KGS W/O PEDALS |
| SHIFTER | SRAM GX TRIGGER RH 10SPD |
| REAR CASSETTE | SRAM PG1020 11-36T, 10SPD |
| BRAKES | SHIMANO DEORE BR-MT500, 160MM ROTORS |
| LEVERS | SHIMANO DEORE BL-MT501 |
| FRONT TYRE | VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING |
| REAR TYRE | VEE CROWN GEM SKINWALL 20x2.25", 72TPI FOLDING |
| HEADSET | SEMI INTEGRATED, 1 1/8" CARTRIDGE BEARING |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |

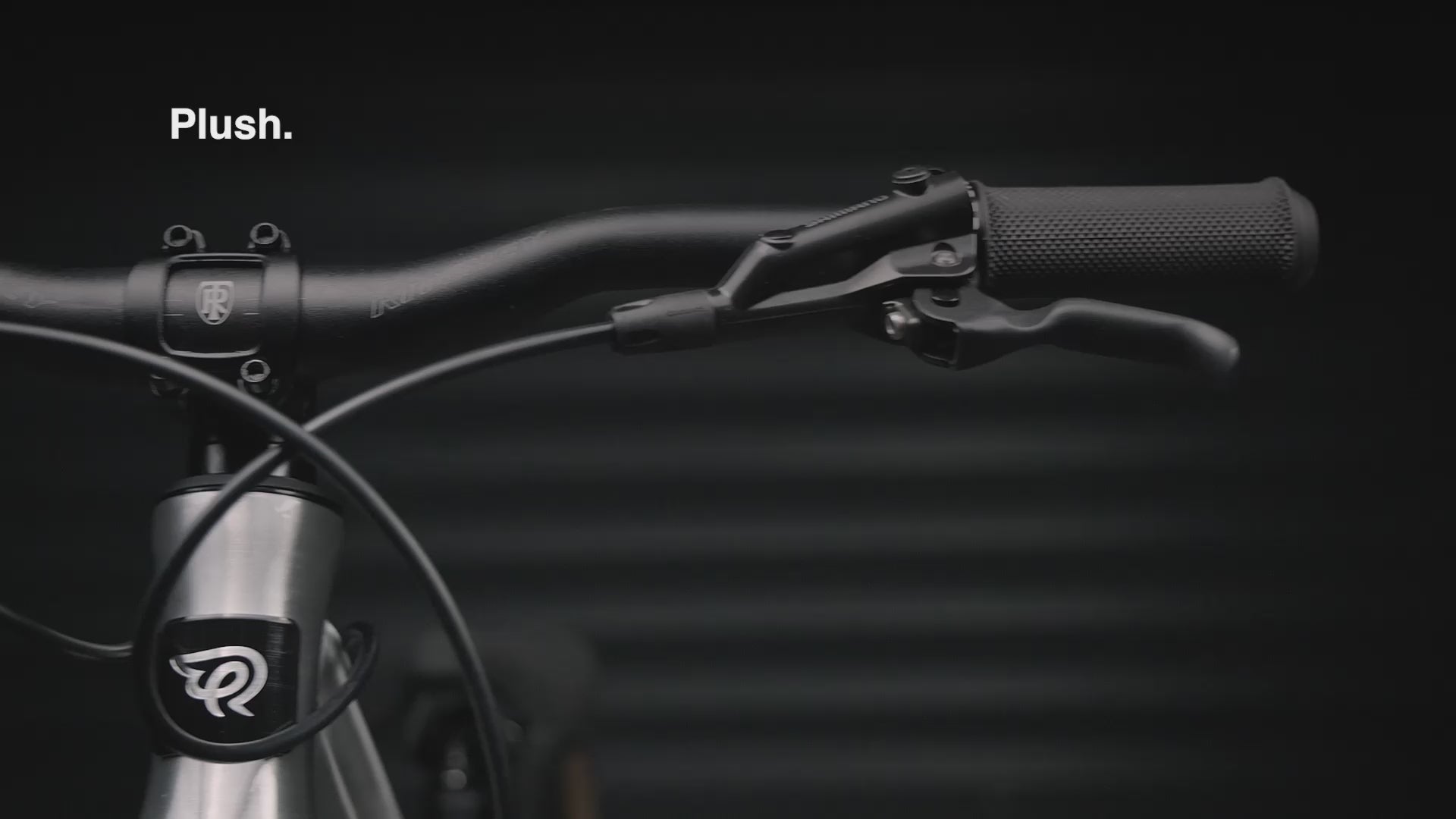

| BARS | 560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER LOCK ON KRATON 92MM |
| SEAT POST | RITCHEY, 30.9MM x 225MM, AL2014 |
| SADDLE | ER WINGED, RAILED |
| SEAT CLAMP | PROMAX QR, 34.9MM |

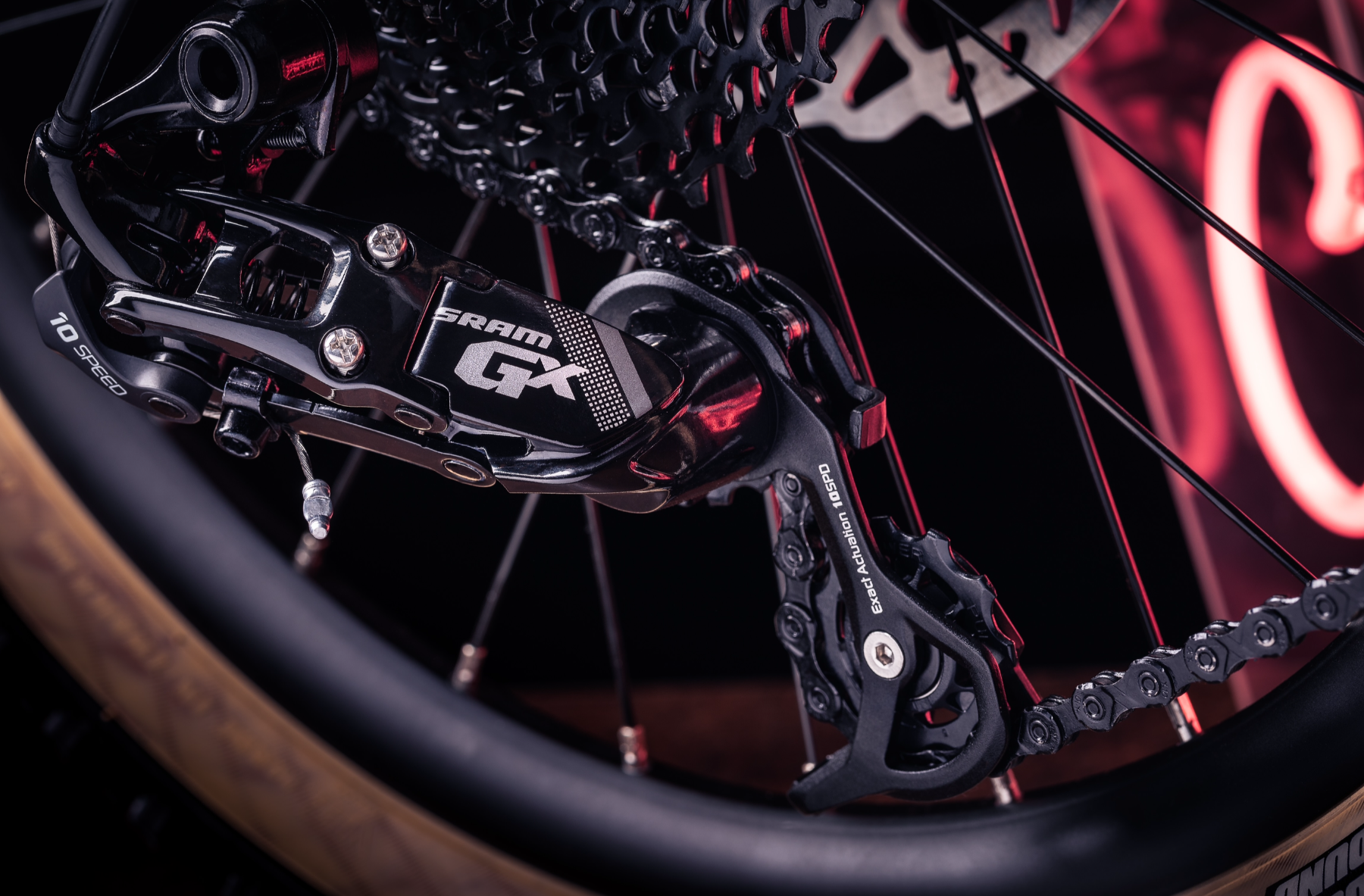

| DERAILLEUR | SRAM GX 10SPD SHORT CAGE |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |

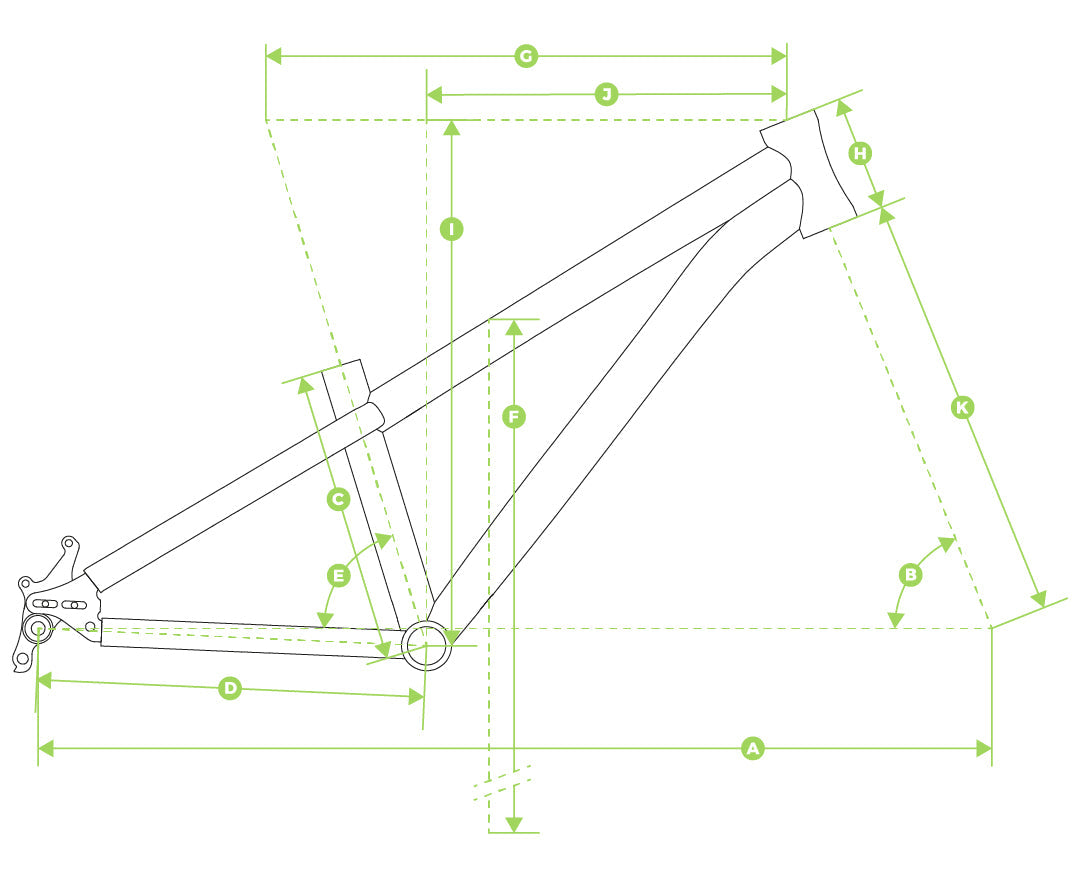

| A | Wheelbase | 880mm |
| B | Head Angle | 67° |
| C | Seat Tube Length | 245mm |
| D | Chainstay Length | 335mm |
| E | Seat Tube Angle | 73° |
| F | Standover Height | 535mm |
| G | Top Tube Length | 455mm |
| H | Head Tube Length | 100mm |
| I | Stack | 468mm |
| J | Reach | 312mm |
| K | Fork Length | 403mm |
